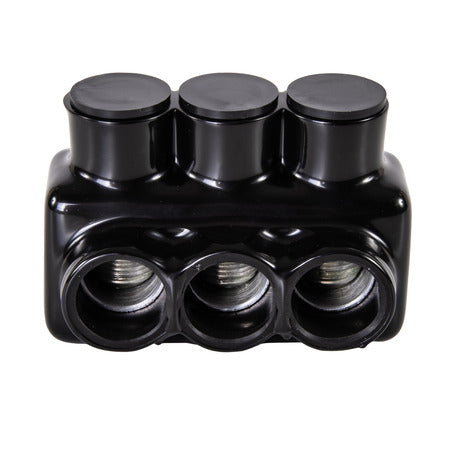

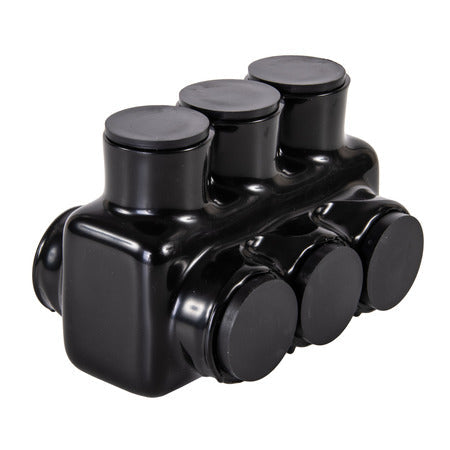

NSI 3-Port Black Multi-Tap Pre-Insulated Connector
NSI
In Stock
Item Details
#IPLD3/0-3B
Polaris Black Multi-Tap Connectors form secure connections between multiple conductors with a rounded design and UV-resistant insulation coating. Installs with a hex key and torque wrench, with no need for cover and taping.
- Dual-Sided Wire Entry: Form secure connections between 3 conductors quickly using the double-side entry ports sized for wires between 3/0 and 6 AWG. Suitable for use on the line side of the service equipment as per the NEC article 230.46 requirement.
- Ergonomic Design: Rounded corners and a smooth exterior finish over the abrasion-resistant plastisol insulation make Polaris connectors comfortable to grip
- Removable Plugs: Each port and set screw comes with a secure plug to prevent debris from entering the insulated connector
- Pre-filled Oxide Inhibitor: All 3 dual-sided entry (DSE) ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
- Full Product Line: Polaris matches your application with multiple UL-listed parallel configurations across a range of gauges and number of ports
Product Information
| Voltage Rating | 600 V |
|---|---|
| Material | Aluminum |
| Finish | Plastisol Insulated |
| Color | Black |
| Pack Qty | 1 |
| GTIN | 662381957016 |
| UPC | 662381957016 |
| EAN | 662381957016 |
| UNSPSC | 39121409 |
| Origin Country | US |
| Certifications | cULus, 9d71e7f821454f7b84f0a15642ea01d2 |
| Ul Standard | UL 486A/B |
| Ul File No | E186991 |
| Wire Cable Class | Class B, Class C |
| Al Conductor Max Amp | 175 |
| Cu Conductor Max Amp | 225 |
| Conductor Cu Size Range | 3/0 AWG – 6 AWG |
| Conductor Al Size Range | 3/0 AWG – 6 AWG |
| Conductor Type | Copper, Aluminum |
| Temp Rating | 90C, AL9CU |
| Conductors Count | 3 |
| Hex Wrench Size | 1/4 |
| Env Temp | Cold Temperature rated to -45C |
| Assortment | Black UV Coated Pre-Insulated Connectors |
| Application | Splice, Tap |
| Max Torque | 250 |
